Closed shoulder driving design for driving axles on multi-purpose regional service vehicles.

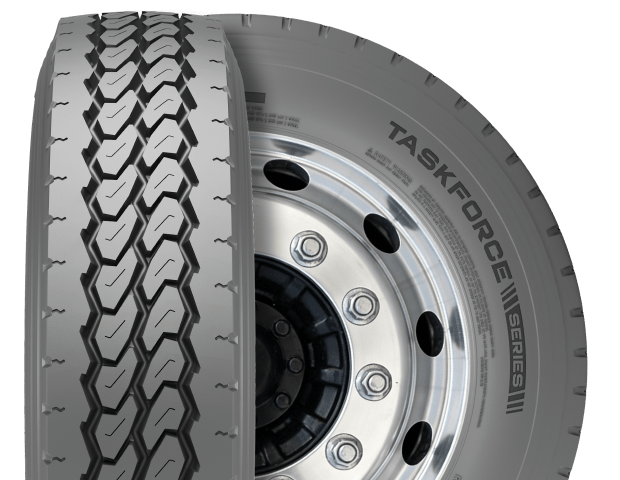

Evolving pipe-shaped tread pattern ensures all-wheel drive capability throughout tire life.
Multi-blade design enhances traction and helps dissipate heat.
Evolving groove pattern cleans tread effectively, reducing casing damage and increasing refurbishment potential.
| WHEEL DIAMETER | SIZE | L.S | PARTS NUMBER | MAX PSI | SINGLE TIRE MAX LOAD LBS | DUAL TIRE MAX LOAD LBS | MEASURING RIM | APPROVED RIM WIDTH | OD INCH | SW INCH | TD 32ND | SIDEWALL |
| 19.5" | 225/70R19.5 | 14PR 128/126M | PDTBR101 | 110 | 3970 | 3750 | 6.75 | 6.00,6.75 | 32.17 | 8.90 | 18.1 | BLK |
| 225/70R19.5 | 16PR 130/128M | PDTBR103 | 120 | 4190 | 3970 | 6.75 | 6.00,6.75 | 32.17 | 8.90 | 18.1 | BLK | |
| 245/70R19.5 | 16PR 136/134M | PDTBR106 | 120 | 4940 | 4675 | 7.50 | 6.75,7.50 | 33.27 | 9.76 | 18.1 | BLK |
*Every effort has been made to verify the accuracy of the listed Information.
Transamerica Tire cannot be held responsible for any discrepancies,and as such the information should be considered as approximate.
-
-
tread designEvolving pipe-shaped tread pattern ensures all-wheel drive capability throughout tire life. -
groove designEvolving groove pattern cleans tread effectively, reducing casing damage and increasing refurbishment potential.
-
Multi-blade designMulti-blade design enhances traction and helps dissipate heat.
