Advanced all-steel belt construction enhances durability and increases payload capacity.
Patented polymer tread compound reduces rolling resistance, improving fuel economy and tread life.

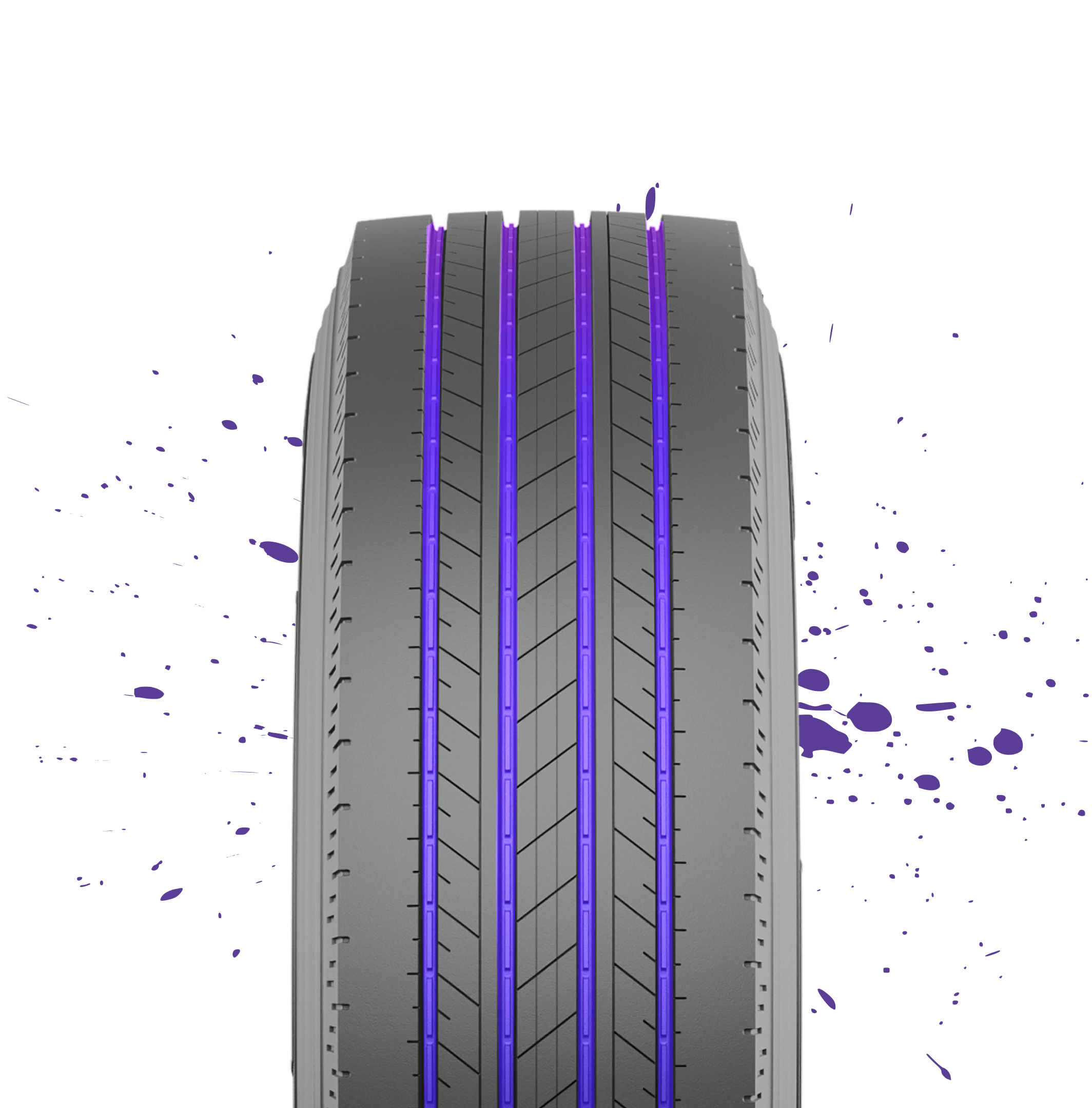

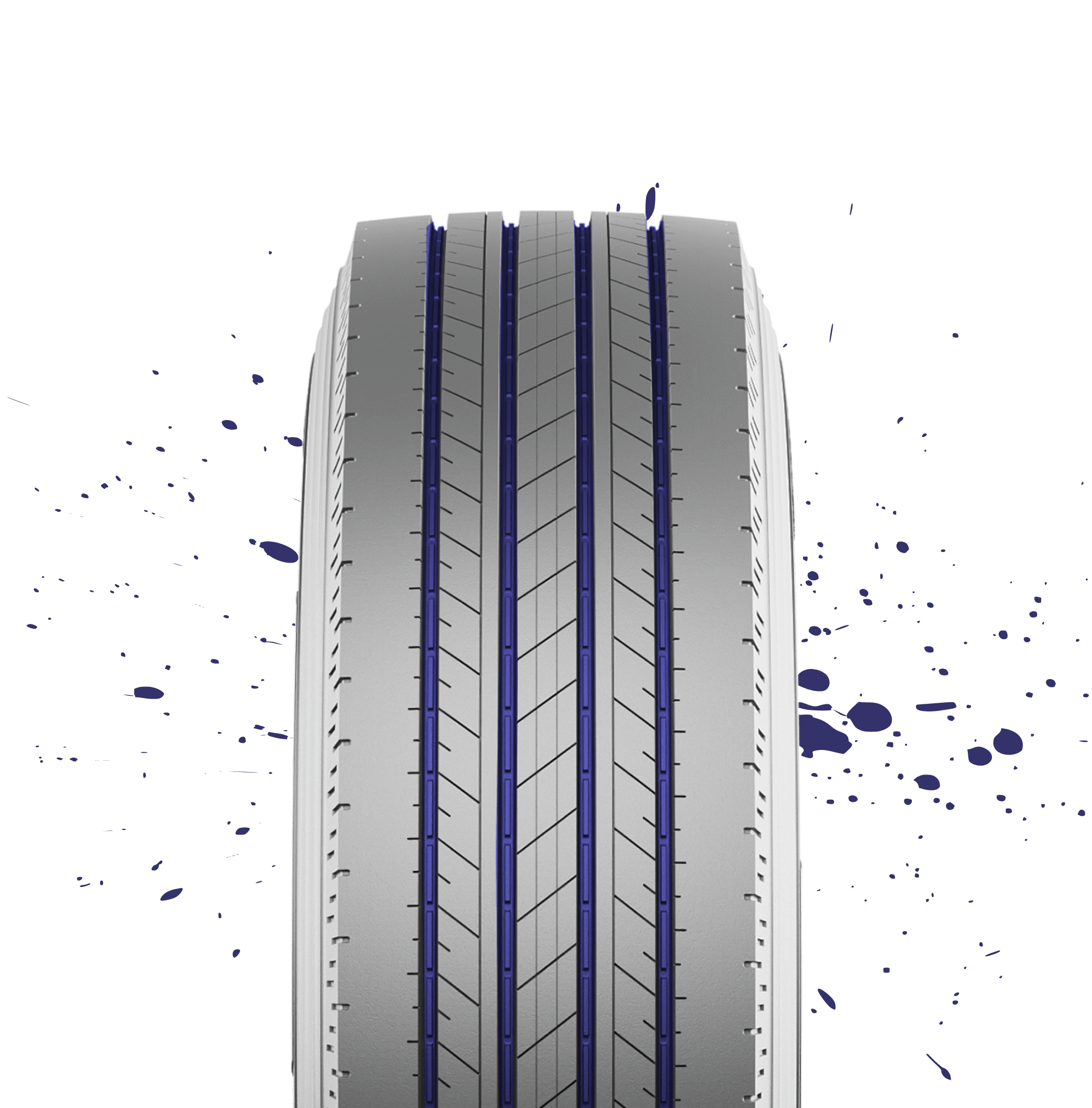

Four circumferential grooves channel water and slush to prevent hydroplaning.
Symmetrical ribbed tread design delivers directional stability, a smooth ride, and low rolling resistance.
The optimized tread profile creates a wider tire footprint for better weight distribution, promoting even tire wear and increased tread life.
| TIRE SIZE | LOAD/SPEED INDEX | PARTS NUMBER | STANDARD RIM | APPROVED RIM WIDTH RANGE | OD INCH | SW INCH | TD 32ND | Sidewall | 3PMSF |
| ST205/90R15 | G/14PR 125/120L | PTST02 | 5 1/2J | 5.0 - 6.5 | 29.53 | 7.99 | 9.7 | BLK | N |
| ST225/75R15 | F/12PR 121/117M | PTST03 | 6J | 6.0 - 7.5 | 28.31 | 8.78 | 10.3 | BLK | N |
| ST225/75R15 | G/14PR 123/119L | PTST04 | 6J | 6.0 - 7.5 | 28.31 | 8.78 | 10.3 | BLK | N |
| TIRE SIZE | LOAD/SPEED INDEX | PARTS NUMBER | STANDARD RIM | APPROVED RIM WIDTH RANGE | OD INCH | SW INCH | TD 32ND | Sidewall | 3PMSF |
| ST235/80R16 | G/14PR 129/125M | PTST05 | 6 1/2J | 6.0 - 8.0 | 30.79 | 9.25 | 9.7 | BLK | N |
| ST235/80R16 | H/16PR 130/126L | PTST06 | 6 1/2J | 6.0 - 8.0 | 30.79 | 9.25 | 9.7 | BLK | N |
| ST235/85R16 | G/14PR 132/127M | PTST07 | 6 1/2J | 6.0 - 7.5 | 31.73 | 9.25 | 11.6 | BLK | N |
| ST235/85R16 | H/16PR 133/128L | PTST08 | 6 1/2J | 6.0 - 7.5 | 31.73 | 9.25 | 11.6 | BLK | N |
