shoulder design
Premium closed-shoulder driving design suited for long-haul driving axles.
-
tires Light TruckCarTrailerCommercial
- About
- Events
- Become a Dealer
- Tire Registration
-
Partner Portal
- Tires 101
- Contact
FIND A TIRE
All fields are required

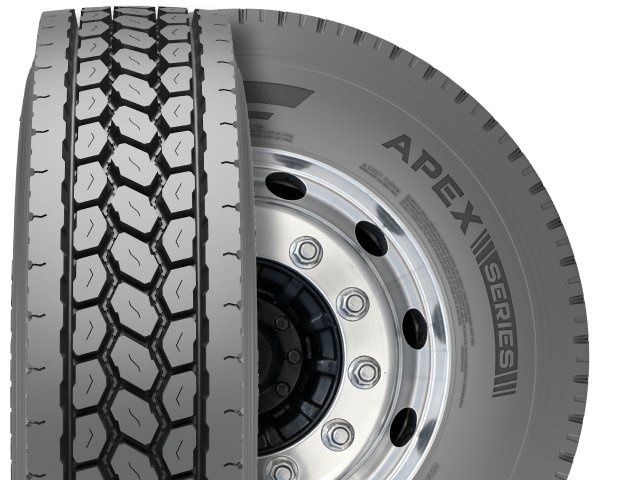

Premium closed-shoulder driving design suited for long-haul driving axles.
Features a large pattern design for superior driving capability and a stable steel belt structure to sustain excellent wear resistance.
Ultra-wide tread and deepened patterns, combined with specialized compounds, extend driving range.
| WHEEL DIAMETER | SIZE | L.S | PARTS NUMBER | MAX PSI | SINGLE TIRE MAX LOAD LBS | DUAL TIRE MAX LOAD LBS | MEASURING RIM | APPROVED RIM WIDTH | OD INCH | SW INCH | TD 32ND | SIDEWALL |
| 22.5" | 11R22.5 | 14PR 144/142M | PDTBR67 | 105 | 6175 | 5840 | 8.25 | 7.50,8.25 | 41.94 | 11.00 | 29.0 | BLK |
| 11R22.5 | 16PR 146/143M | PDTBR68 | 120 | 6610 | 6005 | 8.25 | 7.50,8.25 | 41.94 | 11.00 | 29.0 | BLK | |
| 295/75R22.5 | 14PR 144/141L | PDTBR84 | 110 | 6175 | 5675 | 9.00 | 8.25,9.00 | 40.39 | 11.73 | 29.0 | BLK | |
| 295/75R22.5 | 16PR 149/146L | PDTBR87 | 123 | 7160 | 6610 | 9.00 | 8.25,9.00 | 40.39 | 11.73 | 29.0 | BLK |
*Every effort has been made to verify the accuracy of the listed Information.
Transamerica Tire cannot be held responsible for any discrepancies,and as such the information should be considered as approximate.
-
-
pattern designFeatures a large pattern design for superior driving capability and a stable steel belt structure to sustain excellent wear resistance. -
tread designUltra-wide tread and deepened patterns, combined with specialized compounds, extend driving range.
